The main application of Stainless Steel Channel is engineering structures, industrial tools, machinery parts, building construction etc.

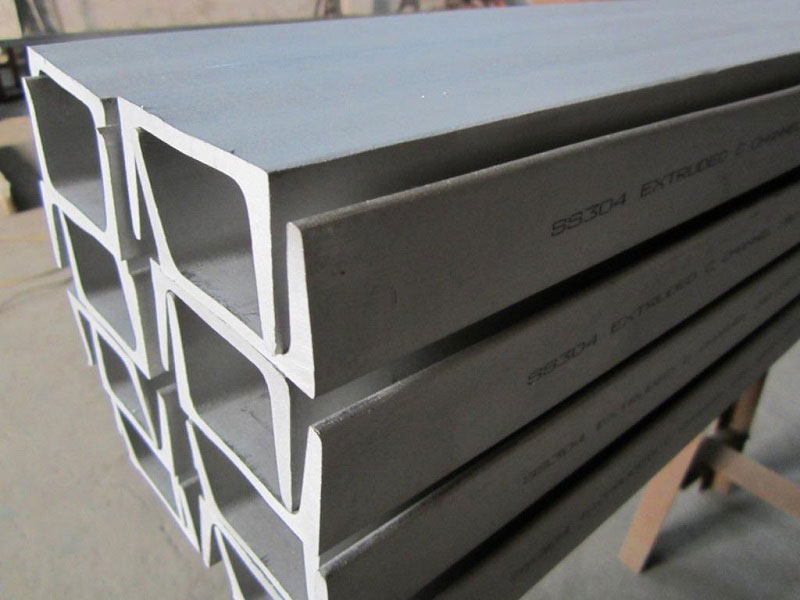

Printing of AISI alloy No. Size, and heat No. on each channels. Shape C, U, H etc.
Hot Rolled Stainless Steel Channel Size and Theoretical Weight
| Size | Theoretical Weight | |||
| Height | Width | Thickness | ||
| 5 | 50 | 37 | 4.5 | 5.438 |
| 6.3 | 63 | 40 | 4.8 | 6.634 |
| 8 | 80 | 43 | 5 | 8.045 |
| 10 | 100 | 48 | 5.3 | 10.007 |
| 12.6 | 126 | 53 | 5.5 | 12.318 |
| 14#a | 140 | 58 | 6 | 14.535 |
| 14#b | 140 | 60 | 8 | 16.737 |
| 16#a | 160 | 63 | 6.5 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 19.754 |
| 18#a | 180 | 68 | 7 | 20.174 |
| 18#b | 180 | 70 | 9 | 23 |
| 20#a | 200 | 73 | 7 | 22.637 |
| 20#b | 200 | 75 | 9 | 25.777 |
| 22#a | 220 | 77 | 7 | 24.999 |
| 22#b | 220 | 79 | 9 | 28.453 |
| 25#a | 250 | 78 | 7 | 27.41 |
| 25#b | 250 | 80 | 9 | 31.335 |
| 25#c | 250 | 82 | 11 | 25.26 |
| 28#a | 280 | 82 | 7.5 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 35.823 |
| 28#c | 280 | 86 | 11.5 | 40.219 |
| 32#a | 320 | 88 | 8 | 38.083 |
| 32#b | 320 | 90 | 10 | 43.107 |
| 32#c | 320 | 92 | 12 | 48.131 |
| 36#a | 360 | 96 | 9 | 47.814 |
| 36#b | 360 | 98 | 11 | 53.466 |
| 36#c | 360 | 100 | 13 | 59.118 |
HS Code: 73012200000
Free Sample is Available.
