Stainless Steel Flat Bar Size and Theoretic Weight

Width(mm) Thickness(mm)
3 4 5 6 8 10 12 14 16 20 25 30
Theoretic Weight kg/m
10 0.238 0.32 0.40 0.48 0.63
15 0.36 0.48 0.59 0.71 0.95 1.19
20 0.476 0.63 0.79 0.95 1.27 1.59 1.90
25 0.585 0.79 0.99 1.19 1.59 1.98 2.38
30 0.714 0.95 1.19 1.43 1.90 2.38 2.85 3.33 3.81 4.758 5.948
40 0.952 1.27 1.59 1.90 2.54 3.17 3.81 4.44 5.08 6.34 7.93 9.52
50 1.19 1.59 1.98 2.38 3.17 3.97 4.76 5.55 6.34 7.93 9.91 11.90
60 1.428 1.9 2.38 2.85 3.81 4.76 5.71 6.66 7.61 9.52 11.90 14.27
70 2.22 2.78 3.33 4.44 5.55 6.66 7.77 8.88 11.10 13.88 16.65
80 3.17 3.81 5.08 6.34 7.61 8.88 10.15 12.69 15.86 19.03
90 3.57 4.28 5.71 7.14 8.56 9.99 11.42 14.27 17.84 21.41
100 3.97 4.76 6.34 7.93 9.52 11.10 12.69 15.86 19.82 23.79
110 5.23 6.98 8.72 10.47 12.21 13.96 17.45 21.81 26.17
120 5.71 7.61 9.52 11.42 13.32 15.23 19.03 23.79 28.55
130 6.19 8.25 10.31 12.37 14.43 16.49 20.62 25.77 30.93
140 6.66 8.88 11.10 13.32 15.54 17.76 22.20 27.76 33.31
150 7.14 9.52 11.90 14.27 16.65 19.03 23.79 29.74 35.69
160 7.61 12.69 15.23 17.76 20.30 25.38 31.72 38.06
170 13.48 16.18 18.87 21.57 26.96 33.70 40.44
180 14.27 17.13 19.98 22.84 28.55 35.69 42.82

HS Code: 72224000

Free Sample is Available.

Thickness × Width × 0.00793 = Weight (kg) per meter



Size Tolerance of Hot Rolled SS Flat Bar (ASTM A484/484M)

Width (mm) Thickness & Tolerance (mm) Width Tolerance (mm)
3.2?T?13 13?W?25 25?W?50
W?25 ±0.20 ±0.25 —– ±0.40
25?W?50 ±0.30 ±0.40 ±0.80 ±0.80
50?W?100 ±0.40 ±0.50 ±0.80 + 1.60 / – 0.80
100?W?150 ±0.40 ±0.50 ±0.80 + 2.40 / – 1.60

Stainless Steel Flat Bar Album

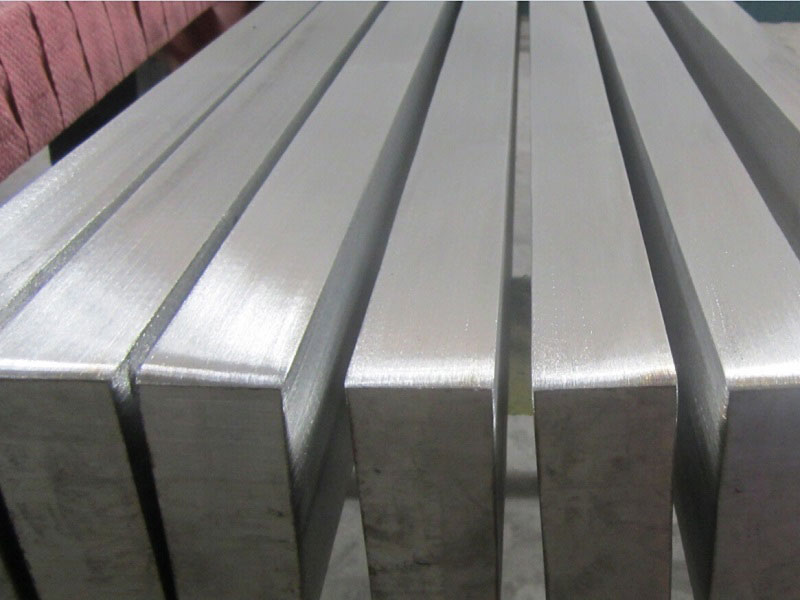

Stainless Steel Flat Bar Production

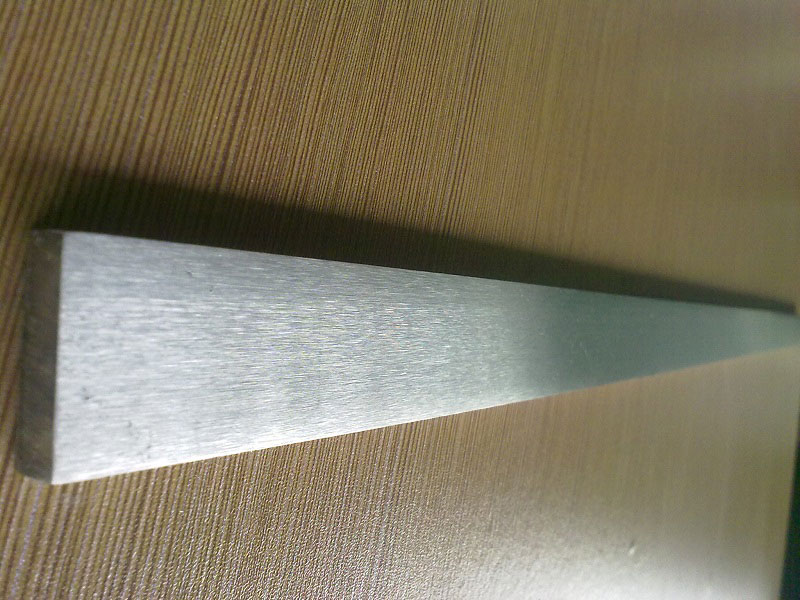

Stainless Steel Flat Bar Sample

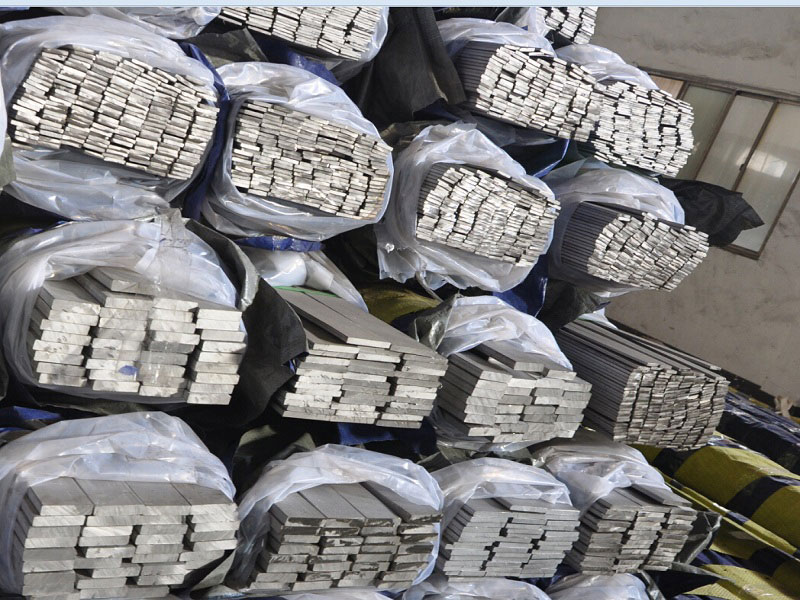

Stainless Steel Flat Bar Stock
